Control: PLC

Shifting: electro-hydraulic

Control Cooling: cooler/oil heat exchanger

Inlet water filter accuracy: ≤0.45μm

Oil-return filter accuracy: 20 μm

Working temp: 0-50°c

Outlet: UNF 3/8" Cooling in/out-let: NPT1"

Max orifice size: 0.33mm

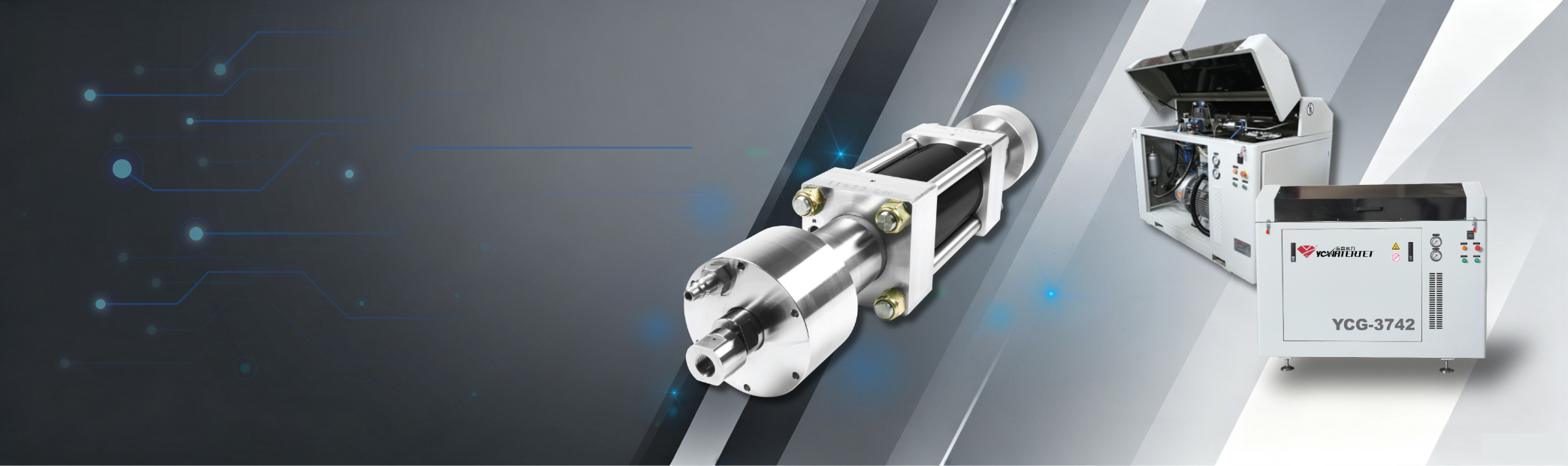

YC water jet cutting pump is a kind of high pressure pump with unique design, which not only facilitates the installation and maintenance for customers, but also ensures stable working pressure and improves working efficiency. Now we have three kinds of high pressure pumps： 30KW / 40HP, 37KW / 50HP and 75KW / 100HP. You can choose the right water jet high pressure pump according to your cutting material and thickness.
As waterjet intensifier pump  is an important part of the water jet cutting system, in order to improve its overall performance, the core components of the high-pressure pump are directly imported from the United States, such as supercharger assembly, valve parts and so on.
In addition to our own water jet high pressure pump, we also provide high pressure pumps of famous foreign brands, such as KMT, Hypertherm, and BFT pump.

Regarding to the core parts of high pressure pumps, We have been cooperated with USA Hypertherm/Accustream since the year 2008.

Saving more than 30% of energy consumption.

The self monitoring compensation pressure makes the pressure output of
the whole high pressure system more stable.

The closed loop hydraulic circuit makes the oil temperature of the whole
hydraulic system greatly reduced.

The whole high pressure system works very low noise.

High low voltage function, make the cutting of fragile material more handy.

Soft start to avoid high current peak.

YCG-SERVO high pressure pump system is an efficient servo drive system for controlling the pressure / flow delivery.
The servo control system ( oil pump / motor ) matches the high pressure sensor to ensure accurate pressure control. The pressure / flow state of the pipeline is measured in the high pressure pipeline and the results are passed to the control system. In this way, a control loop is formed which can automatically match the selected cutting nozzle diameter by pressure / flow setting.
The motor of high pressure pump for water jet cutting can be speeded up to 2700 RPM in 50-60 milliseconds. If the cutting head is closed, the motor will be stopped and no energy is consumed.

   KMT

   Hypertherm

   BFT

Core component options

Featuring a low noise, no pollution, high precision and high reliability
