6-Axis Robotic Waterjet

Efficient universal robot waterjet optimized for short cycle times, compact robot waterjet can help create high-density batteries. The 6-axis robotic waterjet cutting system can achieve more compact manufacturing units, improve yield and quality, which means increased productivity.

Select a suitable robot body for different 3D application scenarios, and combine it with pure water or sand added ultra-high pressure water jet cutting to achieve perfect cutting of various materials. Robotic waterjet cutting has various advantages such as no thermal deformation, smooth cutting surface, and no high temperature generation.

CONTACT

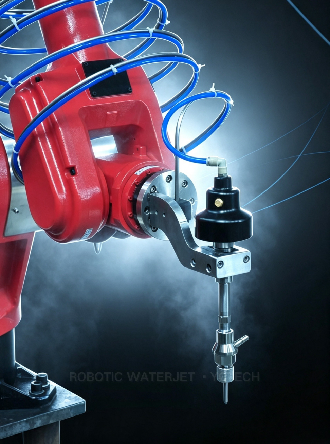

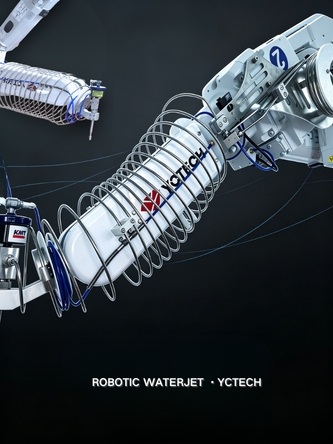

KMT cutting head-robotic waterjet of YCwaterjet

3D Complex Contour Precision

6-axis industrial robotic arm enables full spatial 3D movement, eliminating geometric limits of traditional gantry waterjets.

Pure Water / Abrasive Versatility

Precision edge trimming for automotive interiors, acoustic foam, and aerospace carbon composites without heat-affected zones or structural fraying.

Automated Line Integration

Supports automated loading/unloading systems, turn-table Workcells, and dual-station safety enclosures for continuous high-throughput manufacturing.

/ The robot water jet cutter is a high-tech cutting equipment that uses high-pressure water jet to cut various materials. It combines the flexibility and accuracy of the robot with the high efficiency and versatility of the water jet cutter, making it an ideal choice for many industries.

/ This machine can cut a wide range of materials, including metal, non-metal, composites, and more. With its high-pressure water jet, it can cut through even the toughest materials with ease, while ensuring a smooth and accurate cut surface.

/ The robot water jet cutter is highly flexible and can be programmed to perform complex cutting patterns and shapes. It can also be easily integrated with other manufacturing systems to improve production efficiency and quality.

/ In addition, this machine is equipped with advanced safety features to ensure the safety of operators and the surrounding environment. It is also easy to operate and maintain, reducing downtime and maintenance costs.

/ Overall, the robot water jet cutter is a powerful and versatile tool that offers high accuracy, efficiency, and quality. It is widely used in automotive, aerospace, manufacturing, and other industries, helping enterprises to improve their competitiveness and productivity.

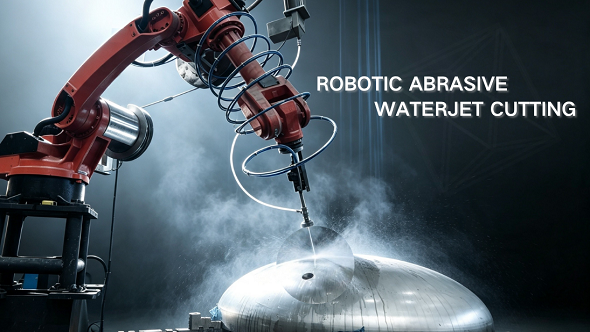

Robotic abrasive waterjet cutting solution

The application scope of abrasive waterjet cutting is relatively common, mainly cutting harder materials such as steel, metal, stone, glass, hard composite materials, glass fiber, carbon fiber, etc.

CONTACT

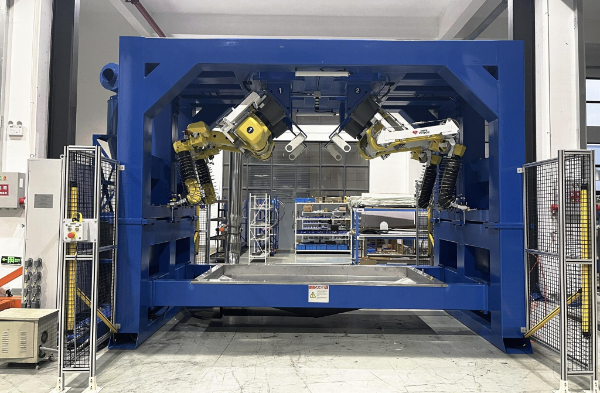

Robotic pure water cutting solution

Pure water cutting is mainly used for soft materials, such as foam, sponge, rubber, soft composite materials, food, etc.

CONTACT

The robotic abrasive waterjet cutting system mainly includes:

a robot, control cabinet, TCP calibration system, ultra‑high pressure piping, workbench (with an optional 45° flip workbench), safety protection, high‑pressure water pump, cooling oil system, water softening system, and an automatic abrasive feeding system.

The robotic water jet has faster cutting speed compared with that of the abrasive cutting series. It is particularly offered for cutting plastic, synthetic board, foam, etc. Particularly popular with automotive upholstery manufacture, our product is an optimal solution for car roof and carpet processing.

The robotic pure waterjet cutting system consists of robotic system, ultra high pressure system, softened water treatment system, vacuum adsorption and wastes discharge and separation system, safety protection system, electric apparatus control system, and the positioning mould.

The automatic cutting system completes all the cutting process through once-through operation, with the employment of extended arm robotic system for actuator, ultra high pressure system for cutting power, and mould for work piece positioning. The pure water cutting mode realizes the processing of edge contour and punching. Particularly, the separation of work piece and waste is conducted, simultaneously.

⑥ Security protection
⑦ Water jet high-pressure pump
⑧ Cooling oil system (for HP pump)
⑨ Water softening system (for HP pump)
⑩* Auto abrasive feeding system
⑩ Vacuum negative pressure fan (optional)

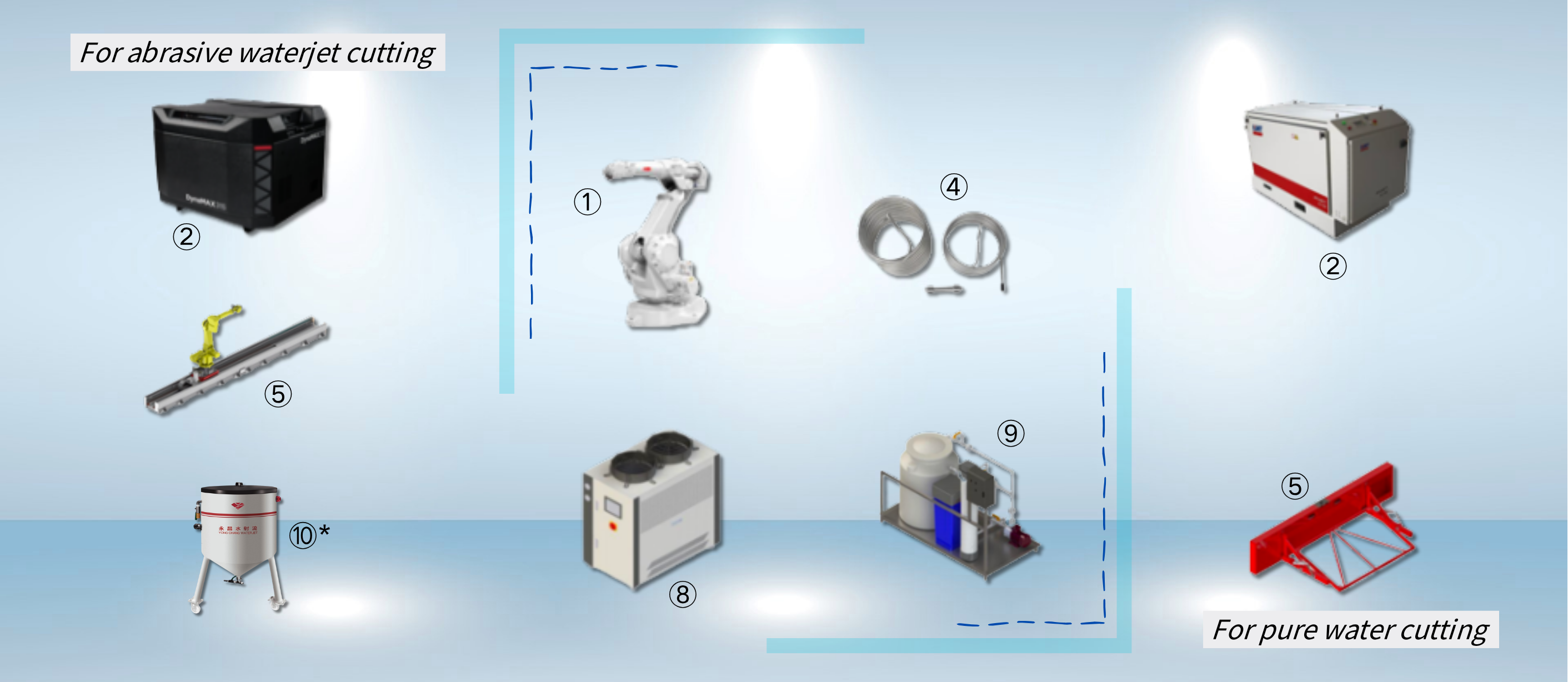

Configurations

①Robot
② Robot control cabinet
③ Robot TCP Calibration System
④ Ultra high pressure piping system
⑤ Workbench
45 ° Flip Workbench (optional)

CONTACT

Main Feature

1、Versatility:
The robotic waterjet cutting machine is applicable for cutting irregular curve. The work piece processed is characterized by smooth incision and optimal consistency.

2、Flexibility:
Through the replacement of the fixing mould, the wide range of work pieces production can be realized.

3、Automatic and high efficiency:
The robot cutting machine has excellent applicability by virtue of the intelligent and flexible control.

4、Energy Conservation and Environmental Protection:
This range of water cooled cutting machine is well received due to the performance of energy conservation, environment protection, high economic efficiency, optimal reliability, and easy maintenance.

5、High Precision Cutting:
It ensures accurate and consistent cuts every time, meeting the highest quality standards.

＞

6、Easy to Operate:
With its user-friendly interface, it does not require highly skilled operators, reducing training costs.

7、Customizable Cutting Parameters:
You can adjust the cutting speed, pressure, and other settings to meet your specific cutting requirements, optimizing the cutting process.

8、Large Cutting Area:
This feature enables efficient handling of large-sized workpieces, increasing productivity.

9、Low Maintenance Requirements:
It reduces downtime and maintenance costs, ensuring maximum uptime and profitability.

10、Safety Features:
The machine is equipped with safety features to protect operators from potential hazards during the cutting process, creating a safe working environment.

In conclusion, the robotic waterjet cutting machine is a cutting-edge solution that combines advanced technology, versatility, and high performance. It offers unparalleled precision, efficiency, and reliability, making it an ideal choice for a wide range of industries and applications.
