Waterjet Controller & Software

WEIHONG CNC SYSTEM

Product Configuration

PM95A

DB9M/P cable

Lambda controller

Specification parameters

CNC Specification	Number of Axes Supported 3-5axes
Control Signals	Plus Frequency 1MHZ Control Mode Position control Control Signal Differential signals Position Signal Type Plus+Direction
Communication	External PCI Interactive with Lambda PHOENIX bus
Spindle	Analog Voltage Output 0-10V
Tool Measurement	Tool Measurement Mode Fixed calibration, Mobile calibration,First calibration & Calibration after tool change
Compensation	Compensation Type Screw error compensation, Backlash compensation, AQE compensation, Tool compensation
Toolpath File	Supported File Format .g/.nc/.u??/.demo/.iso/.eng/.cut/.dxf/.plt/.txt
Operations	WCS Supporting WCS G54-G59 and Work Zero saving Processing Technology Array, Mirror&rotate, Cycle machining
Convenient Operation	Handwheel guide, Breakpoint resume, Tool selection
High-speed High-precision Optimization	Interpolation Algorithms T-type, S-type and LEP algorithms
Software Language	Chinese, English
Safety & Reliability	Sofeware Alarms Alarms of program error, operation error, over-travel error, PLC error, and IO communication error

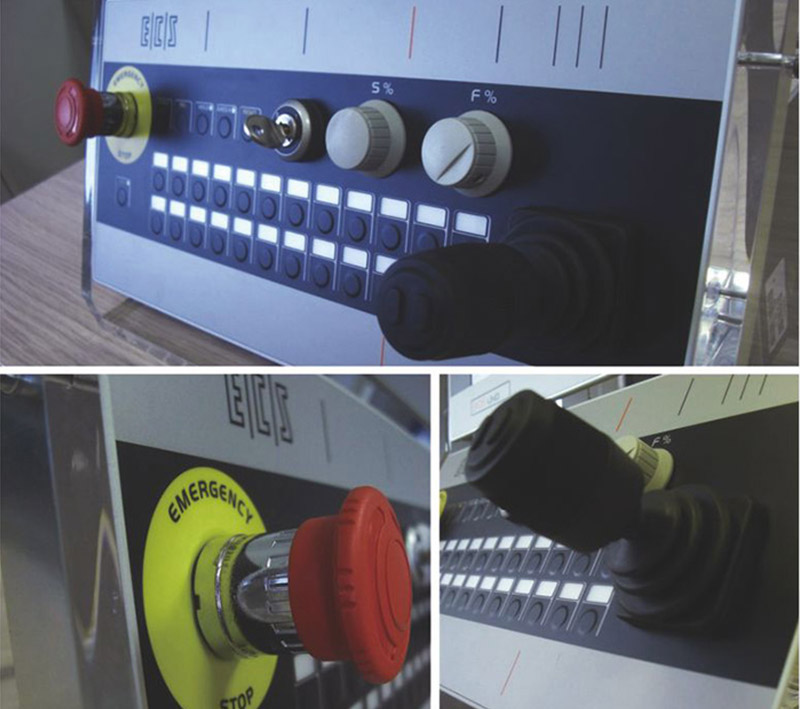

ECS CONTROLLER

Specification Parameters

Up to 16 axes interpolated

Hardware Architecture dual core ( Kontron)

With high performance and low power

Monitor 15" LCD - Integrated Touch Screen(Optional)

Peripheral interface: EtherCAT

Node EtherCAT to manage EcsLink

Mechatrolink® 2 and analogic drives

Up to 2048 I/O with EtherCAT

Modular machine panel (Optional)

Alphanumeric keyboard (Optional)

Main Features

To set of the start and stop points and their parameters

To apply a series of attributes to the selected profile(changes of Scale, mirror image, rotation)

To repeat the selected profile until a plate of set dimensions has been completed or on a matrix with a defined number of lines and columns

To graphically simulate the programmed operation

To save the operation and to call it back later; the selection is provided by a graphic help

To automtically select the preset operation or to call it back and to immediately carry it out

Nesting & Programming

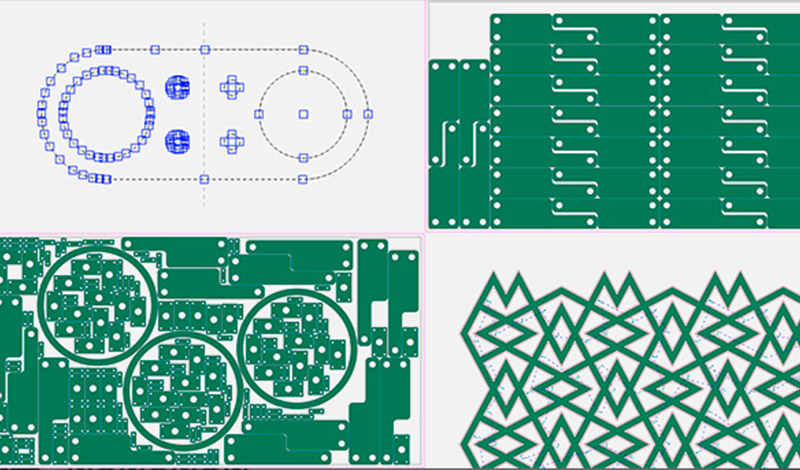

IGEMS is a modern CAD / CAM / NEST software designed for waterjet cutting machines.

Thousands of people around the world use IGEMS to make anything they want. With our massive knowledge within waterjet cutting, and the limitless usage of
the machine, we’re trying to build products that serve our customers, not the other way around.

Core component options

Featuring a low noise, no pollution, high precision and high reliability

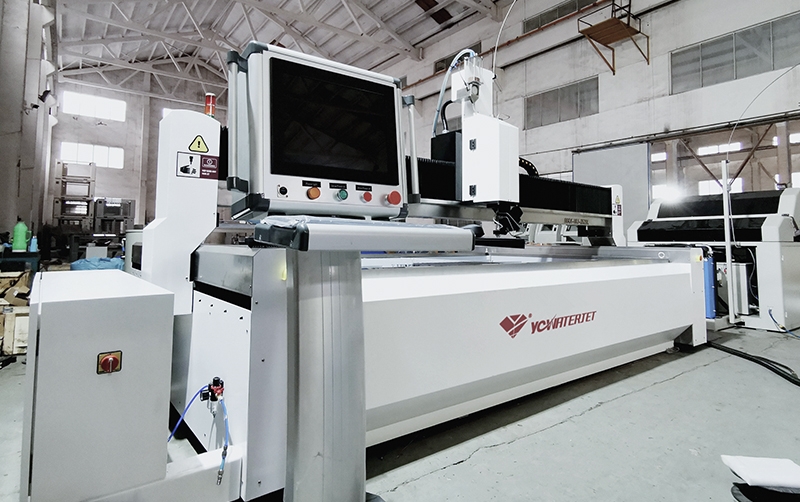

Waterjet Cutting Table

L Series

S Series

G Series

Cutting head

Max 5 cutting head

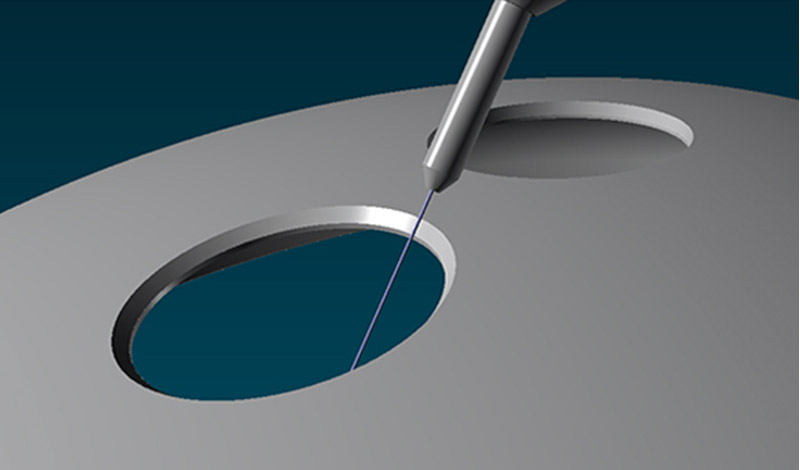

This Max 5 waterjet cutter can cut any angle within ±45°,it solves the traditional problem of water cutting inclination,and achieves 2D/3D cutting easily.

Dynamic 5 cutting head

Our Dynamic 5 water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the 10°cutting angle,without reducing the cuttiong speed.

Multi-head

Double or multiple cutting heads can perform the cutting task with the same track at the same time to improve efficiency greatly.

High Pressure Pump

Unique design of this water jet cutting machine makes the installation and the maintenance easier.Stable working pressure to ensure the working efficiency.
