    Waterjet Food Cutting Machine
    Inquiry Now
    • Product Description
    Product Description
    企业微信截图_22b30254-5f66-41bb-afe4-e48b6d2067ef

    Wide scope of application

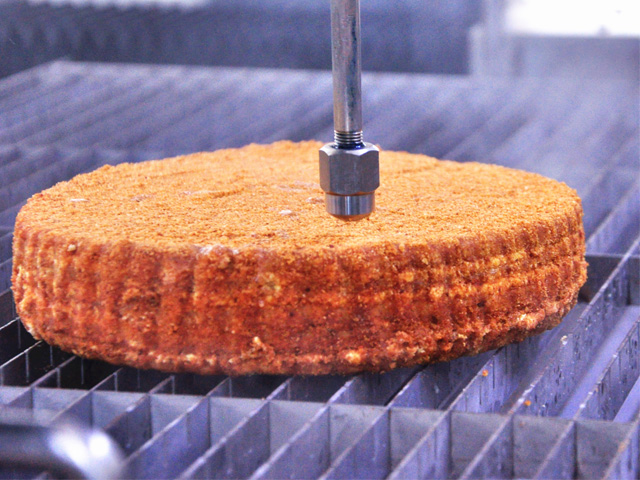

    Water jet cutting can be used not only for all kinds of pastry, pizza, biscuits, moss, but also for meat, fish,vegetables and frozen food cutting etc.


    Safety & Clean

    Cutting In the process of water cutting, food is only in contact with pure water, which avoids the risk of food contamination caused by traditional cutting tools.,It will not maake heat and add any chemicals. Hygiene is unmatched in the cutting process. typically the size of the stream is a width of a human hair at speeds up to 900m per second. This small kerf width is so thin that food will not be compressed or washed out.   No need for mold,


    Easy Operating

    It is easy to obtain the processing graphics by drawing software (AuotoCAD). After the graphics or program is imported into the computer through USB-disk or internet, the pre-set program can be selected on the touch screen to obtain various processing shapes without any molds and tools. The operation is simple and the efficiency is high.


    High productivity,save time

    The quality of cutting depends on the type, temperature and cutting speed of the product. The average cutting speed is about 3-5m/min, when cutting mousse or biscuits, the speed can reach 10m/min.The biggest advantage of waterjet cutting is the time savings using pure water as a food cutting solution. Since no knife  blades are ever used, there is no downtime changing out or sharpening dull blades.



    企业微信截图_12a7fcb8-11a6-41d0-8f3c-5053111e432e
    Model: YCWJ-0806F
    Table structure:
    - It is manufactured with food grade stainless steel,hygienic and reliable. Totally enclosed glass cutting space, clean and dust-free. we can clearly watch the cutting process under the LED lights .
    - It will be shut down if open the window, it's safe and smart.
    - The SS collecting tank can concentrate the residue and the waste water after cutting.
    - Movable cleaning window is simple and convenient to operate.
    - Only water cutting head is easy to maintenance.


    Transmission:

    - With AC servo system, the accuracy is higher.
    - Linear guide and ball screw module is durable.
    - Effective cutting size:800mm*600mm*200mm
    - Maximum idle speed:8000mm/min
    - Maximum cutting speed:5000mm/min


    Dimension:1800×1450×1900mm

    Weight:800kg



    Details of Table



    CNC Controller


    Working Flow Chart


    Food cutting solutions

    Bitmap

    Core component options

    Featuring a low noise, no pollution, high precision and high reliability

    Unique design of this water jet cutting machine makes the installation and the maintenance easier.Stable working pressure to ensure the working efficiency.

    • WEIHONG CNC SYSTEM
    • NESTING &PROGRAMMING
    • ECS CONTROLLER
    • ABRASIVE DELIVERY SYSTEM
    • COOLING SYSTEM

    • SLUDGE REMOVE SYSTEM
    • HIGHT SENSOR

    • WATER SOFTEN SYSTM
    • DRILLING CUTTING HEAD
    • LOADING SYSTEM

    • EXCHANGE PLATFORM
