Product Specifications:
| Parameter | Value |
|---|---|

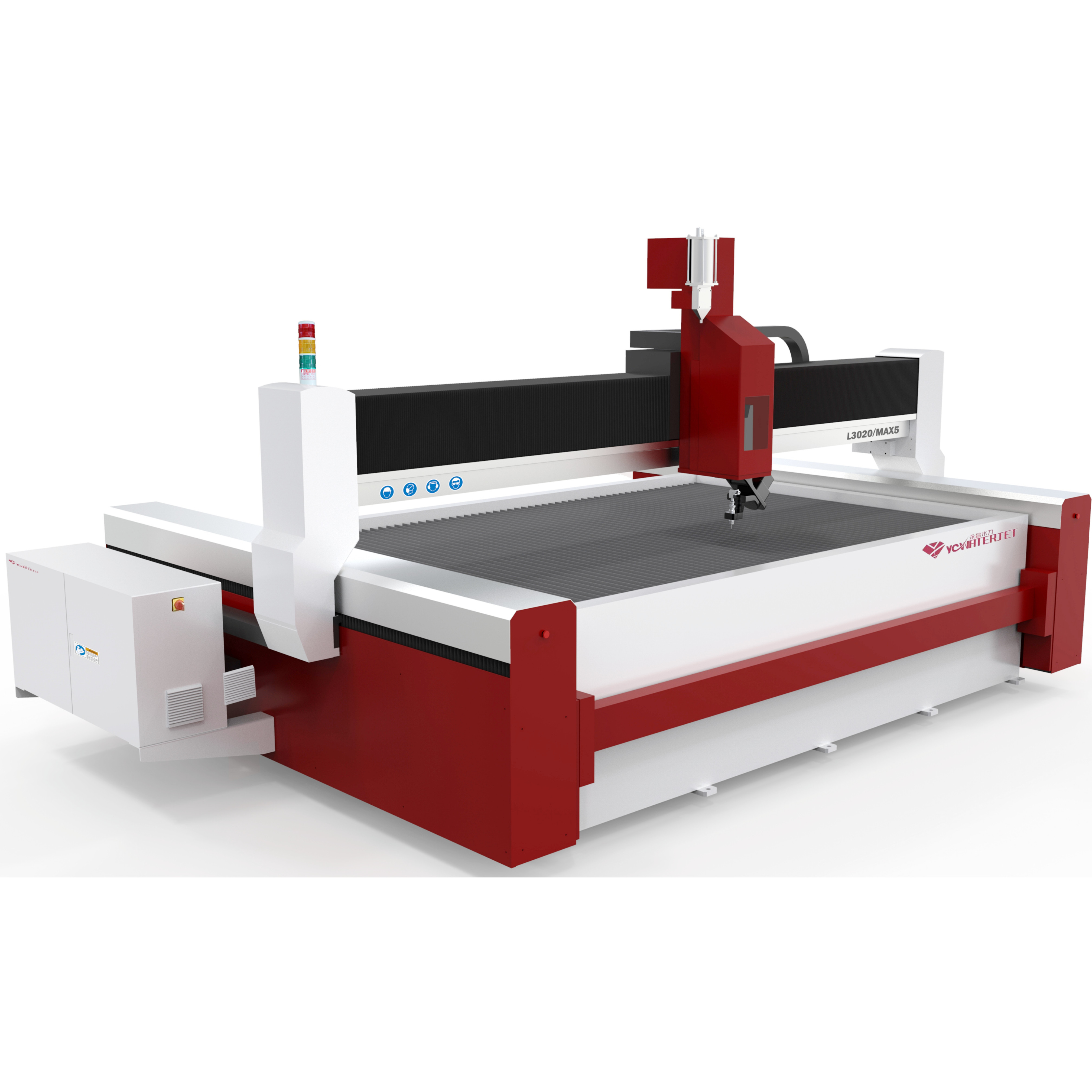

| Machine Type | 5 Axis 3D Cutting Machine |
| Waterjet Type | Most Powerful Electric Waterjet |
| Cutting Materials | Stainless Steel, Marble, Glass |
| Cutting Precision | High Precision, Clean Edges |
| Cutting Capability | Seamless Cutting Through Various Materials |
| Power Source | Electric Waterjet |
| Energy Efficiency | Energy-Efficient Operation |
| Application | Stainless Steel, Glass, Marble, and General Precision Cutting |
| Performance | Reliable and Consistent |
| Machine Dimensions | Customizable (please inquire for specific sizes) |
| Special Features | 5 Axis 3D Cutting, Electric Waterjet, High Efficiency |
Product Application:
Waterjet Stainless Steel Cutting: Ideal for precise and efficient cutting of stainless steel materials.

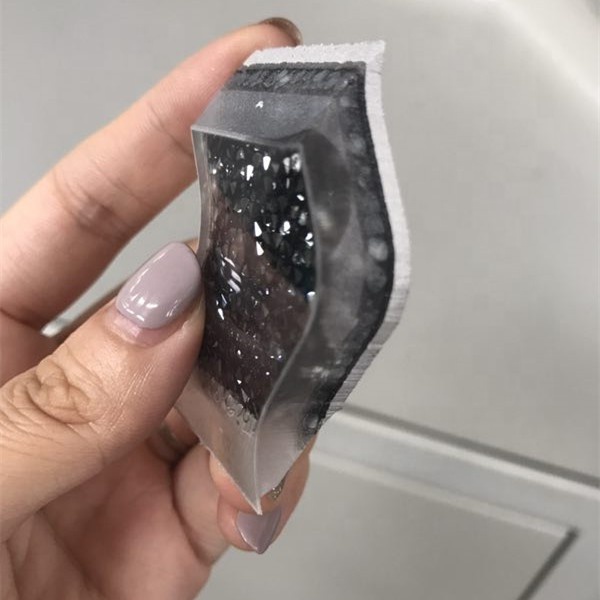

Glass Cutting: Capable of cutting intricate designs in glass with precision.
Marble Cutting: Handles complex shapes in marble with ease, delivering clean cuts.
General Precision Cutting: Suitable for cutting a variety of materials like stainless steel, marble, and glass, providing versatile cutting solutions.
Product Features:

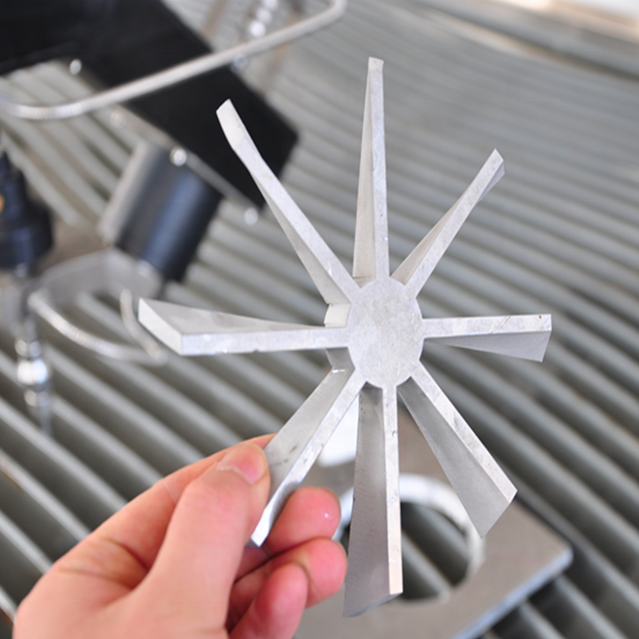

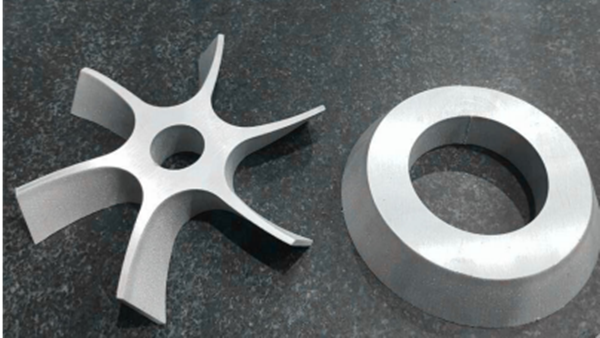

5 Axis 3D Cutting Machine: Provides precise multi-dimensional cuts for complex shapes and designs.
Powerful Waterjet: Ensures high-efficiency cutting through a variety of materials, including stainless steel, marble, and glass.
Electric Waterjet Functionality: Guarantees reliable, consistent performance while improving energy efficiency.
High Cutting Precision: Delivers accurate, clean edges and cuts with ease, even in intricate designs.
Product Advantages:
Exceptional Power and Efficiency: The powerful waterjet allows for seamless cutting, reducing time and effort while maintaining high accuracy.
Energy Efficiency: The electric waterjet contributes to lower energy consumption while providing consistent cutting performance.
Versatile and Reliable: Capable of cutting through a variety of materials, offering flexibility for different applications and industries.
Top-Quality Results: Leaves clean, precise edges, especially with challenging materials like stainless steel, glass, and marble, ensuring superior finished products.

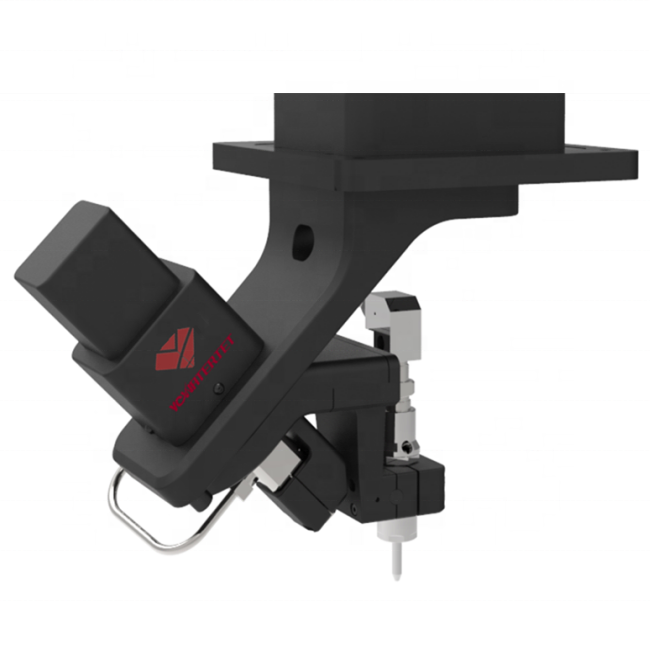

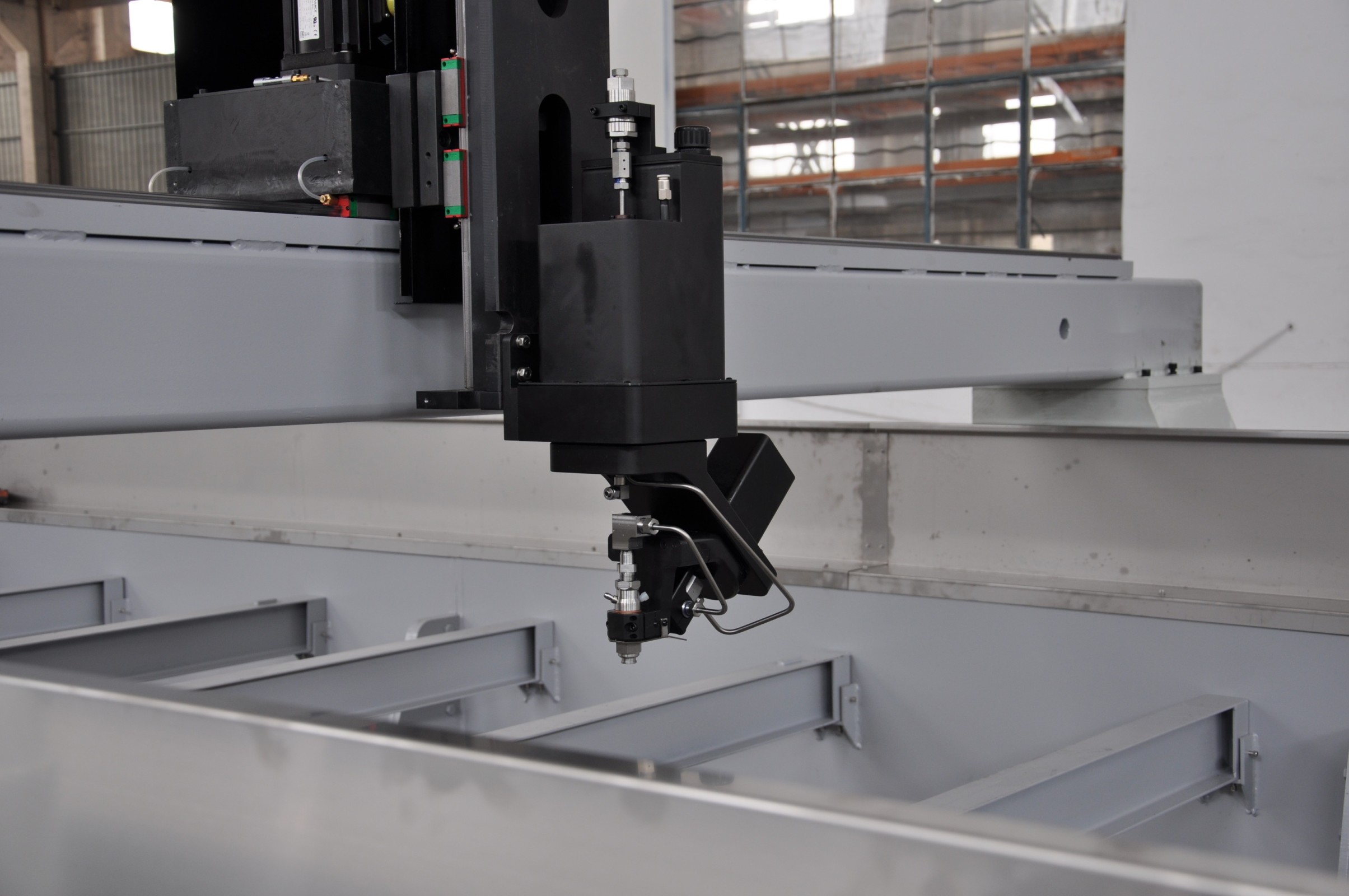

3D waterjet cutting head Technical Parameters
Bevel axis (A): ±45°
Rotary axis (C): ±540°
Control accuracy: ±0.01mm
Angle accuracy: 0.01°

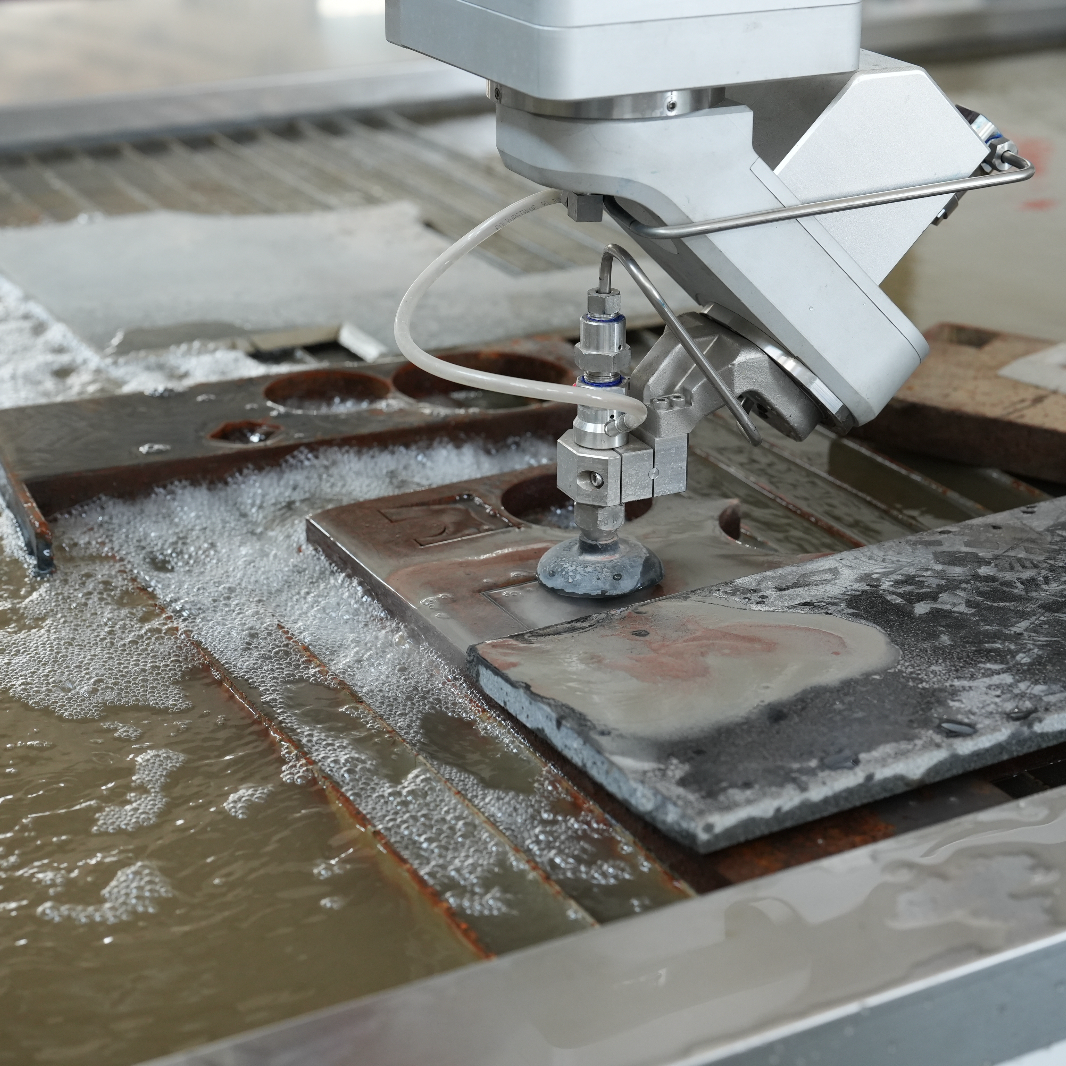

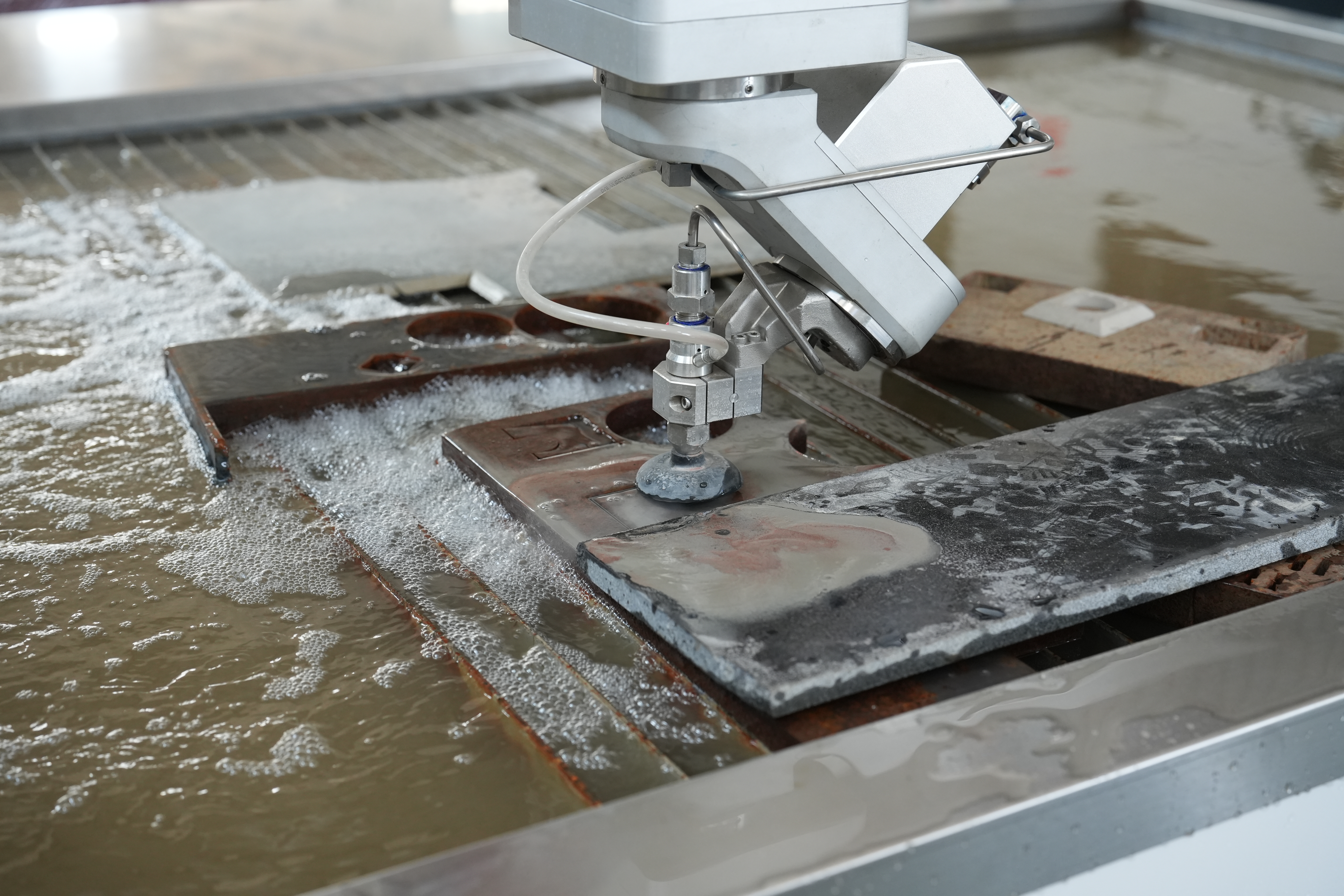

Max 5 axis waterjet cutting head is based on the standard three-axis (x-axis Y-axis Z-axis) and adds the a-axis (rotation around x-axis) and the c-axis (rotation around z-axis), which can achieve large-angle deflection。By using state-of-the-art technology and Italian ECS control system, it can produce 0-±45° or more inclined cuts with a maximum rotation angle of up to ±540°.Therefore, it can achieve the effect of 3d waterjet cutting.

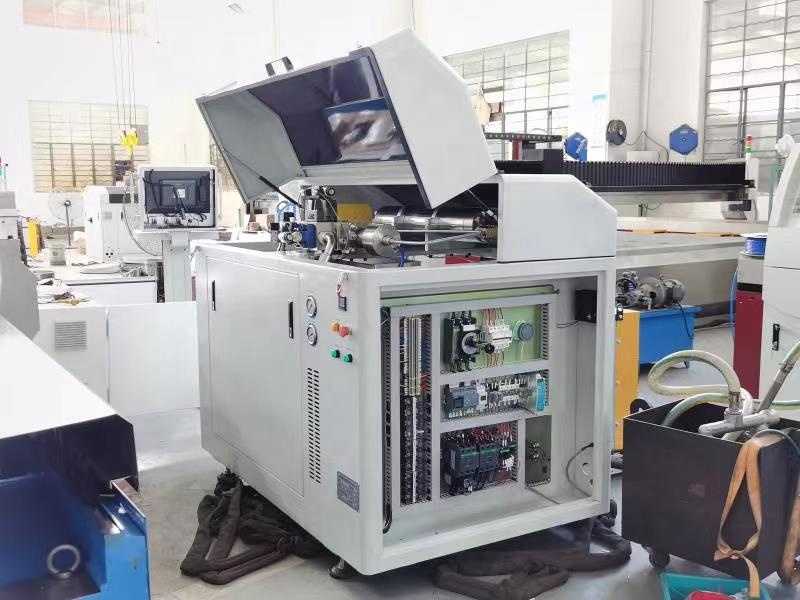

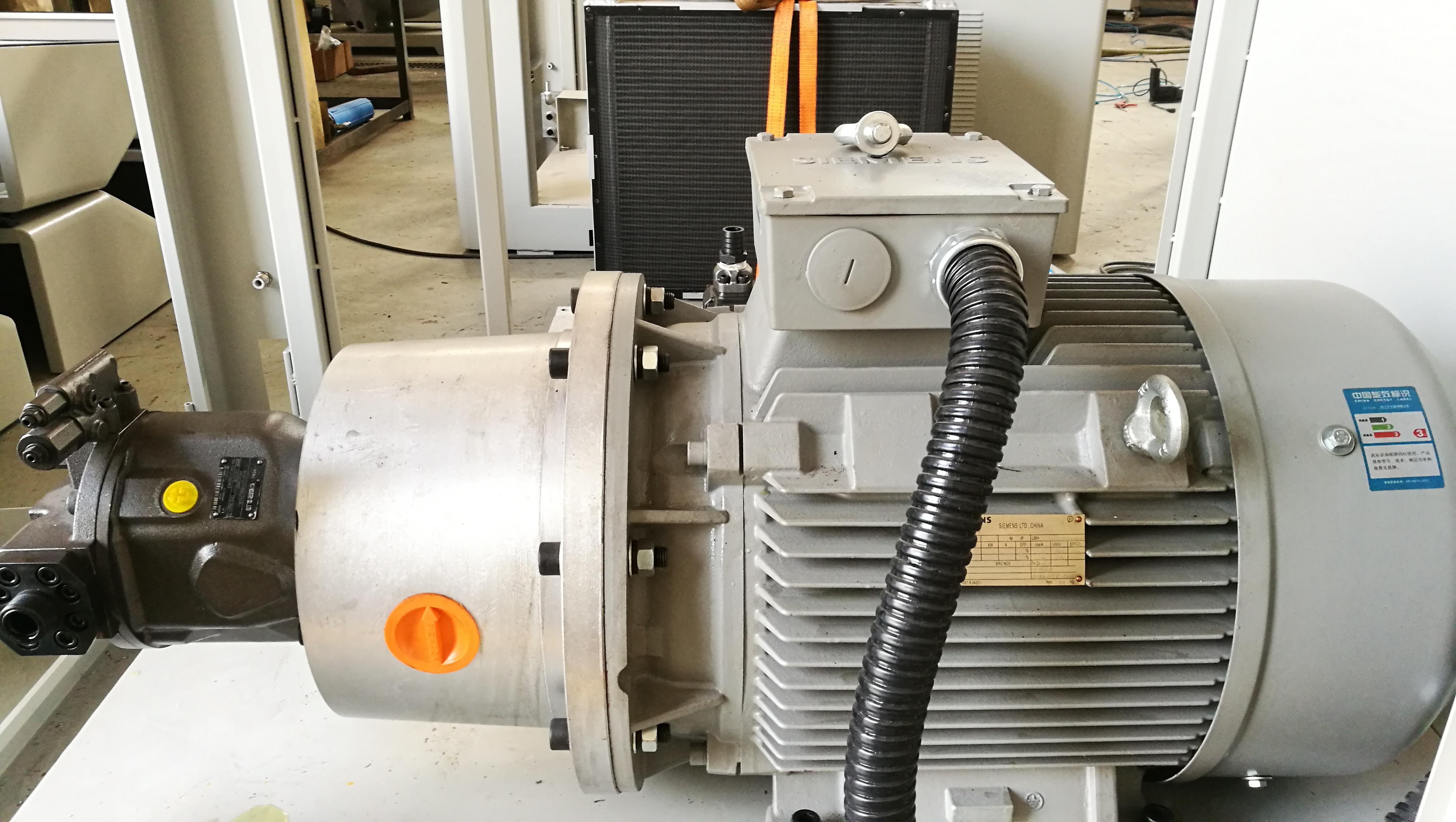

Main Feature:
Control: PLC
Shifting: electro-hydraulic
Control Cooling: cooler/oil heat exchanger
Inlet water filter accuracy: ≤0.45μm
Oil-return filter accuracy: 20 μm
Working temp: 0-50°c
Outlet: UNF 3/8" Cooling in/out-let: NPT1"
Max orifice size: 0.33mm

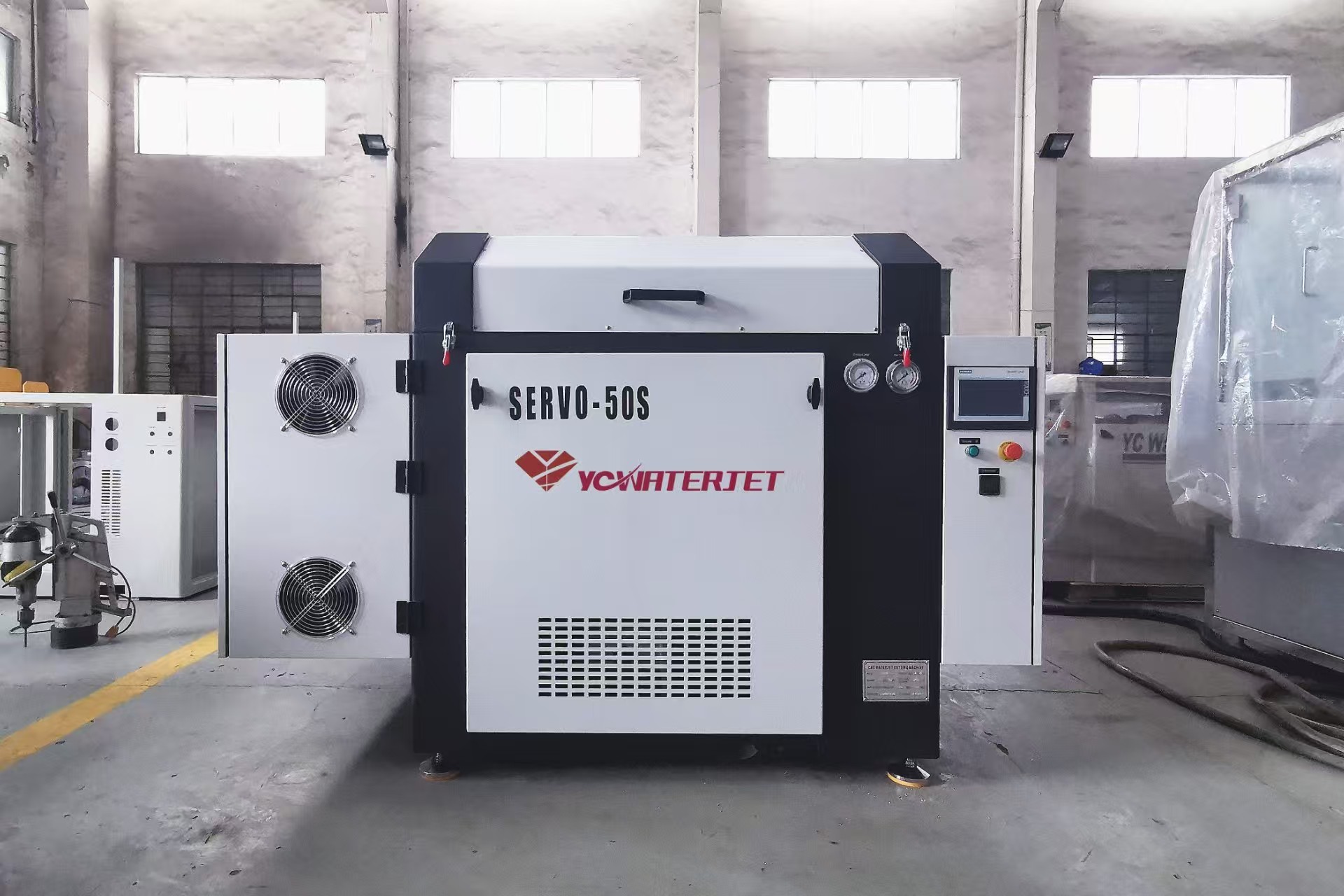

| High Pressure Pump | |||
| Model | YCG-3038 | YCG-3742S | YCG-7542S |
| Max Pressure | 3800Bar/55,000Psi | 4137Bar/60,000Psi | 4137Bar/60,000Psi |
| Max Water Flow | 3.7L/min | 3.7L/min | 7.4L/min |
| Max Orifice/Nozzle | 0.011/0.03 | 0.013/0.04 | 0.016/0.05 |
| Power | 30KW/40HP | 37KW/50HP | 75KW/100HP |
More choices：

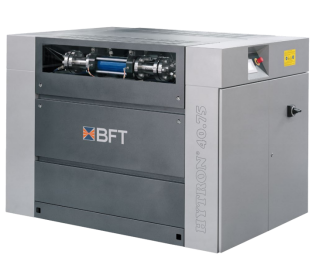

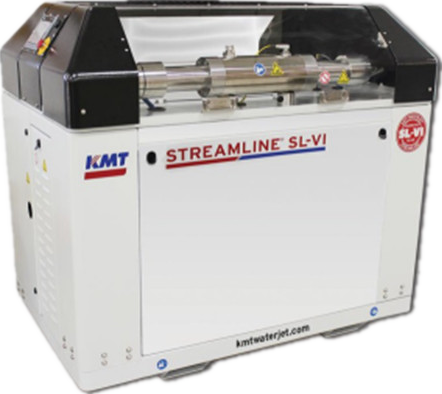

BFT pump KMT pump

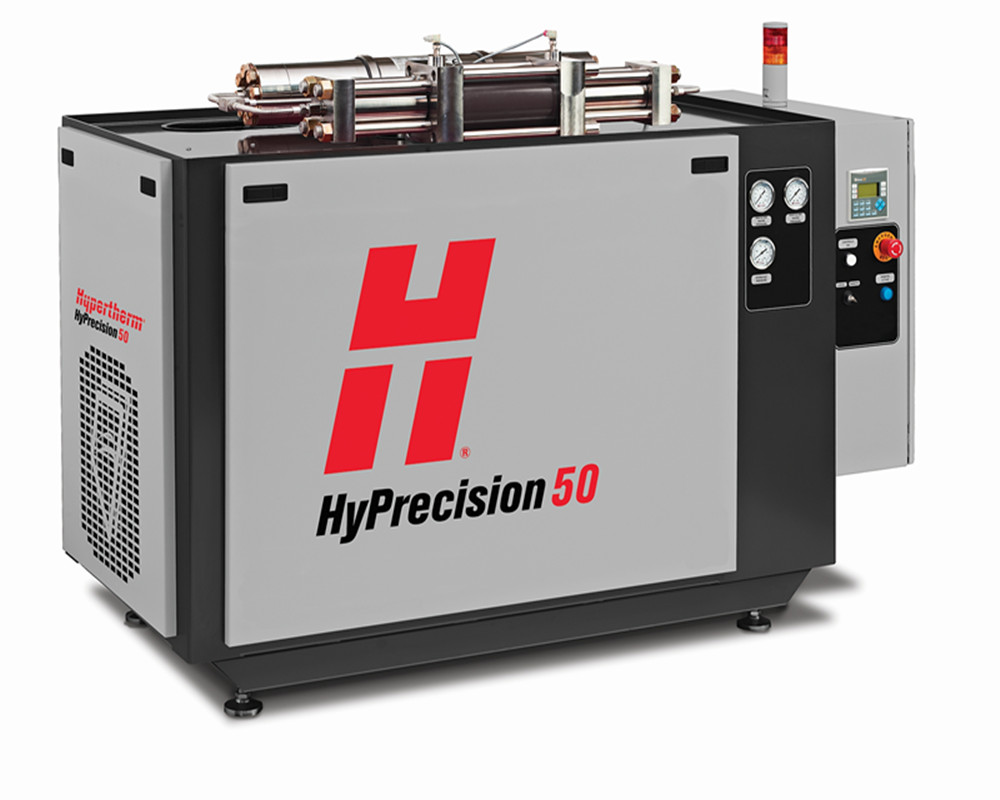

YC Servo pump Hypertherm pump

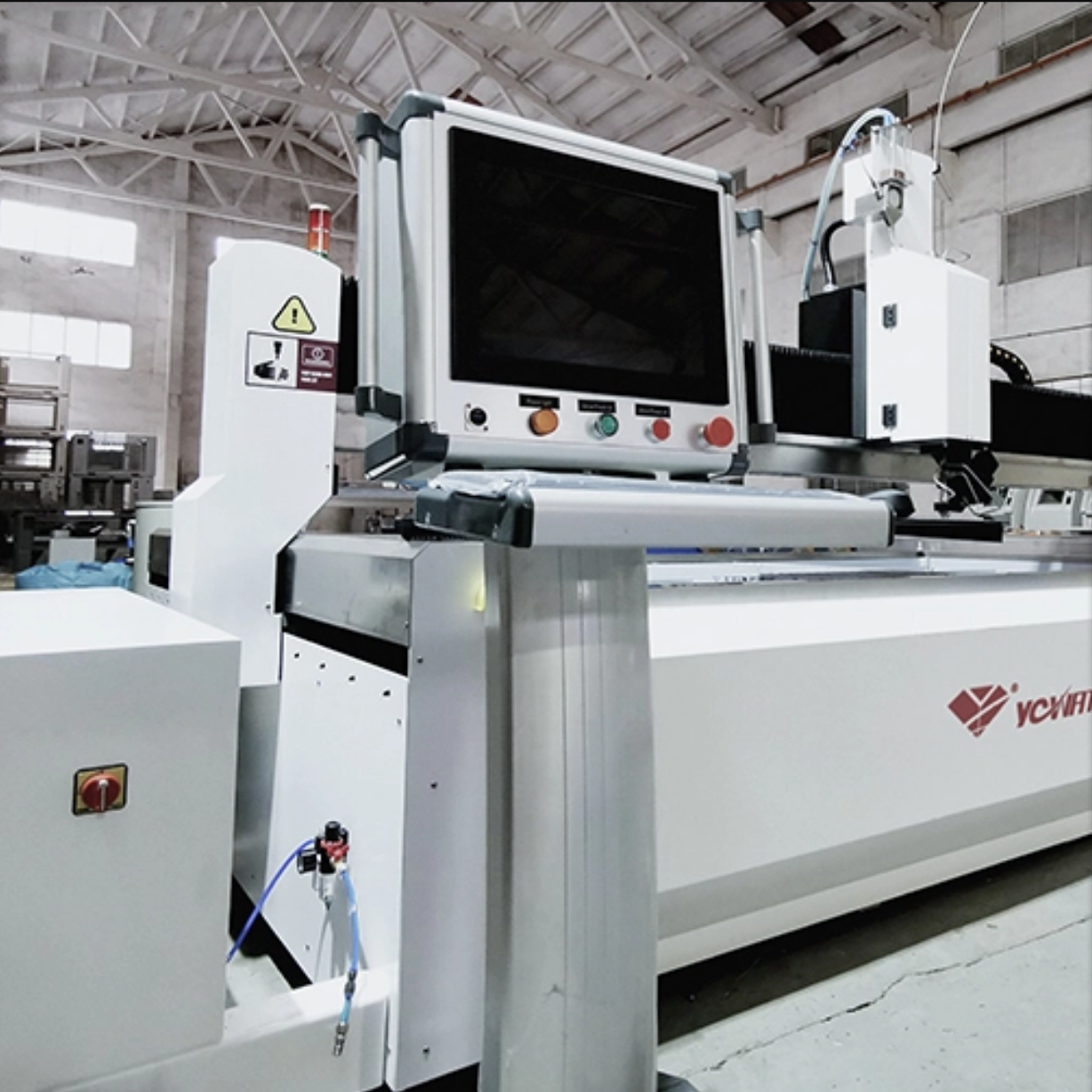

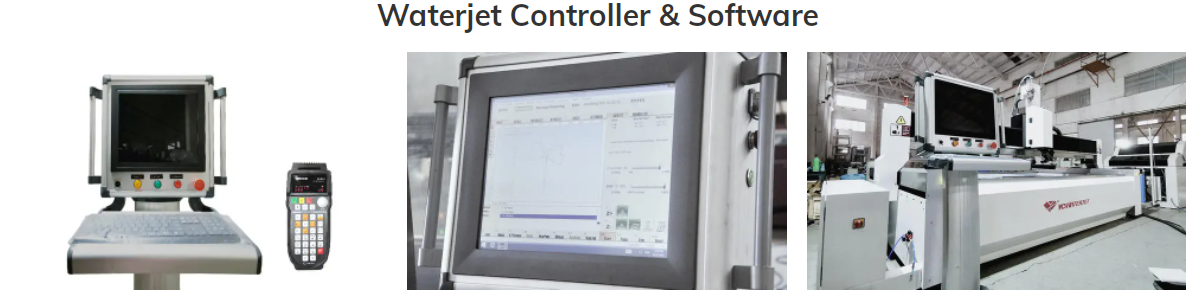

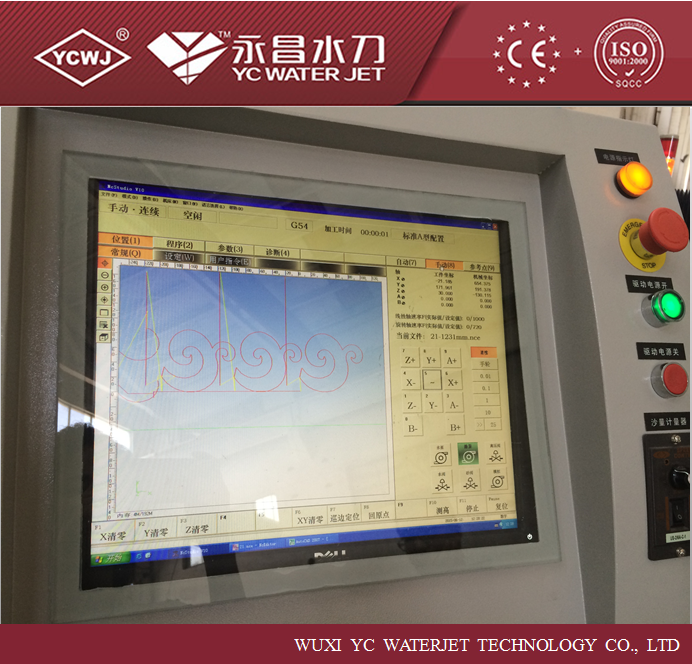

Simple to use, easy to learn, Powerful functions. WEIHONG/ECS/ESA
Main Feature:
1. 17ʺLCD liquid crystal display.
2. DNC on-line working function.
3. Functions of returningarbitrary point,bending and circular are working auto deceleration.
4. Function of cutting figure imitation display.
5. 80GB memory hard disk.
6. MITSUBISHI AC servo driver and motor.
7. 1GB memory card.
8. Multilingual function(Chinese English etc.).
9. Drive-by-wire and hand-hold controller.
10. NAIKY PCIMC-6A special software is special for YC.
