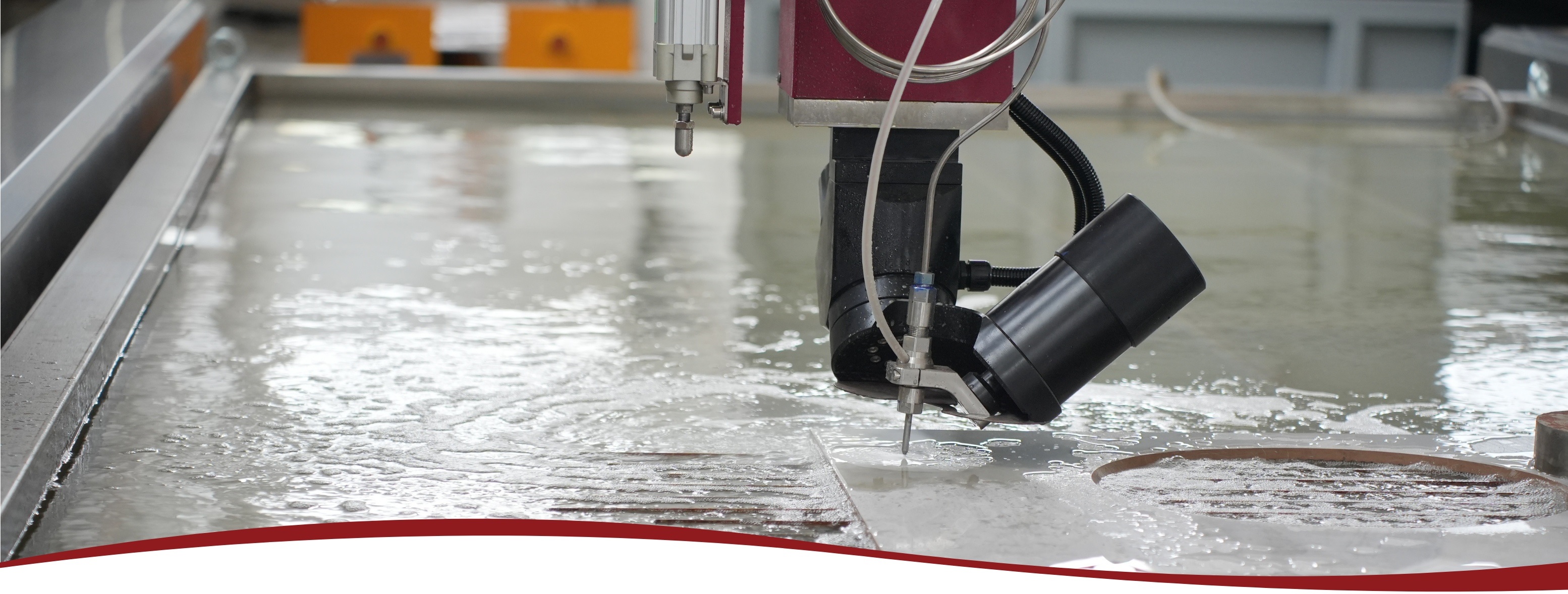

Custom Waterjet Systems-Engineered Around Your Process

Standard machines don't fit every production line. Tell us your workpiece, your process, and your production schedule-we'll engineer the custom waterjet cutting system around them.

Start Your Custom Inquiry

You are here: Home » Customization

What Kind of Custom Solution Do You Need?

-Choose your custom scenario

Non‑Standard Workpiece & Custom Fixtures" />

Non‑Standard Workpiece & Custom Fixtures

Workpieces beyond standard travel or special‑shaped parts require custom fixtures for your waterjet cutting system.
Production Line Integration" />

Production Line Integration

Custom waterjet solution matched to your production rhythm, loading‑unloading system and on‑site layout.
Special‑Process Customization " />

Special‑Process Customization

Multiple‑cutting‑head waterjet systems, combined bevel & flat cutting, integrated piercing & cutting functions.
Turn‑key Configuration Solution " />

Turn‑key Configuration Solution

Share your material, output and workpiece requirements, we deliver tailored waterjet cutting system proposals.

What YC Waterjet Can Custom-Engineer for You?

YC Waterjet' s customization capability

Cutting Table Size
Cutting Head Configuration
Production Line Integration
Pump Configuration

Cutting Table Size

800×800mm to 4000×12000mm-from precision small parts to oversized stone and metal panels.
Every custom waterjet cutting system is sized to your workpiece, not the other way around.

> View 2D Cutting Systems
Cutting Head Configuration

Configured to your workpiece geometry and cutting process requirements:

· Standard 3-axis cutting head - flat-plane precision cutting
> View 2D Cutting Systems
————————
· Dynamic 5-Axis - ±10° taper compensation, stone inlay and composite trimming
> View Dynamic 5-Axis Waterjet Systems
————————
· MAX 5 Axis - A-axis ±60°, C-axis ±540°, true 3D cutting
> View MAX 5-Axis Waterjet Systems
————————
· Multi-Head (up to 8 heads) - simultaneous cutting, multiplied throughput
> View Multi-Head Waterjet Systems
————————
· Drill & Cut Head - pilot hole pre-drilling, eliminates pierce delamination in composites
> View Parts & Consumables
————————
· Robotic Waterjet - full 3D surface cutting, production line integration
> View Robotic Waterjet Systems
Production Line Integration

Automated loading/unloading, conveyor interface, robotic coordination, MES connection — the custom waterjet system is engineered around your production schedule and floor layout.

> Reference: Assembly Line Integration

> View automated integration solutions: Robotic Waterjet
Pump Configuration

Selected based on production volume and continuous operation requirements:
Standard single pump (YCG-3742/YCG-5542S/YCG-7542S)

> View YCG Series Pumps
Ultra-100S dual-intensifier redundant system-24-hour continuous operation, production line never stops

> View High-Pressure Pump Systems

Customize Now

Not sure which combination fits your process?

Tell us your requirements — our engineering team will handle the rest.

How Our Custom Waterjet Process Works?

Step 1 · Requirements Review

Provide workpiece size, material, output and line environment. Our engineers review your custom waterjet cutting requirements within 24 hours.

Learn More
Step 2 · Engineering Proposal

We design a complete waterjet cutting system configuration - table size, cutting head, pump, and integration specs - matched to your process.

Learn More
Step 3 · Proposal Confirmation

You confirm the technical details — working area, cutting head configuration, production line interface specs.

Learn More
Step 4 · Manufacturing & Testing

Custom production begins. Pre‑shipment cutting tests verify that the system performs to specification before it leaves our facility.

Learn More
Step 5 · Installation & Commissioning

YC Waterjet on‑site installation & commissioning. Operator training provided. Production starts only after verified system operation.

Learn More
